24VDC 240W coolant pump for electric truck thermal management BLDC EWP with PWM control 2400L/H 17M lift head

Brand Name : OWP-BL43-426T

Model Number : OWP-BL43-426T

Certification : CE, Rohs

Place of Origin : china

MOQ : 1pcs

Price : Negotiable

Payment Terms : L/C, T/T, Western Union,PAYPAL

Supply Ability : 10000PCS/Month

Delivery Time : as confirmed

Packaging Details : suite for export

Type : Single stage centrifugal pump

Working voltage : 24VDC

Power : 240W

Applications : Cooling system for ships, EVs and compressor

Contact Now

Pump Major Parameters
24VDC 240W coolant pump for electric truck thermal management BLDC EWP with PWM control 2400L/H 17M lift head
Model No.:OWP-BL43-426T
Power Input:24VDC
Rated power:240W
Rated Flow rate :2400L/H @ H=17M
Max Flow:4800L/H
Max Lift Head:20M
---------------------------------------------------------------------------
Medium: glycol(50-60%)+water, dielectric oil,Electronic fluorinated solution
Medium temperature:
Working long hours guaranteed
-40℃ to +85℃ (-40°F to + 185°F)
Nozzle diameter:25mm(1 inch)
Speed Control:PWM
Fault Feedback signal:Yes
IP Grade:IP68
Service life:＞20000hours
Weight:2.2kg
Pump Applications
24VDC 240W coolant pump for electric truck thermal management BLDC EWP with PWM control 2400L/H 17M lift head
EV motor cooling
EV motor controller cooling
Turbocharger intercooler pump
EV battery thermal management
24VDC 240W coolant pump for electric truck thermal management BLDC EWP with PWM control 2400L/H 17M lift head
Battery energy storage cooling
Fuel cell cooling
large-scale GPU cooling
24VDC 240W coolant pump for electric truck thermal management BLDC EWP with PWM control 2400L/H 17M lift head

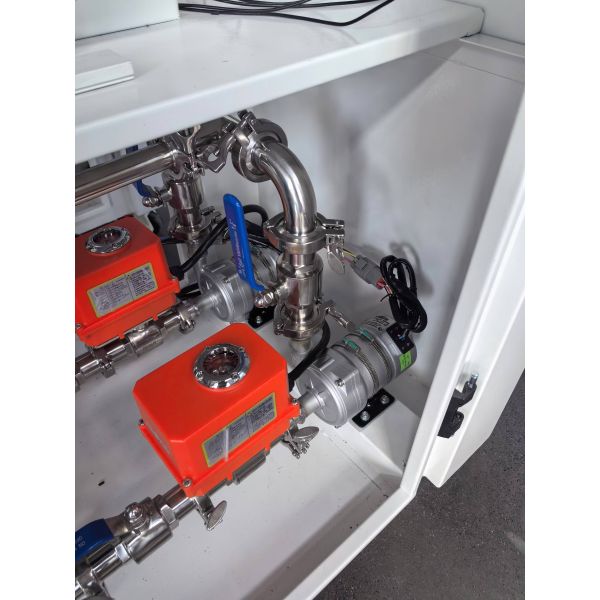

Industrial cooling system
Immersion cooling
Communication base station cooling
Supercomputer cooling
24VDC 240W coolant pump for electric truck thermal management BLDC EWP with PWM control 2400L/H 17M lift head
24VDC 240W coolant pump for electric truck thermal management BLDC EWP with PWM control 2400L/H 17M lift head
24VDC 240W coolant pump for electric truck thermal management BLDC EWP with PWM control 2400L/H 17M lift head
Electricized engineering vehicles IT fluid cooling solutions Battery thermal manage
Pump Appearance
24VDC 240W coolant pump for electric truck thermal management BLDC EWP with PWM control 2400L/H 17M lift head
24VDC 240W coolant pump for electric truck thermal management BLDC EWP with PWM control 2400L/H 17M lift head
24VDC 240W coolant pump for electric truck thermal management BLDC EWP with PWM control 2400L/H 17M lift head
24VDC 240W coolant pump for electric truck thermal management BLDC EWP with PWM control 2400L/H 17M lift head
24VDC 240W coolant pump for electric truck thermal management BLDC EWP with PWM control 2400L/H 17M lift head
Our clients come from 36 countires with high reputation in their fields.
Pump Advantages
24VDC 240W coolant pump for electric truck thermal management BLDC EWP with PWM control 2400L/H 17M lift head

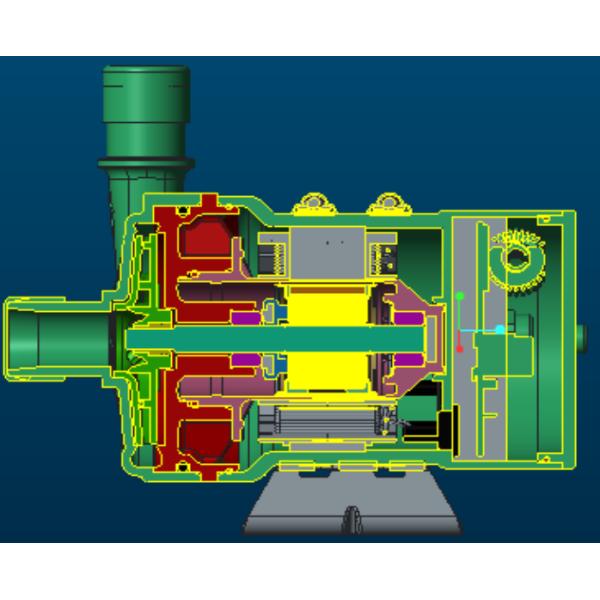

Professional electromagnetic theory design verification ,makes our pump motor 3-5% higher efficiency than other competitors.
24VDC 240W coolant pump for electric truck thermal management BLDC EWP with PWM control 2400L/H 17M lift head
Simulation calculation of hydraulic design by professional software makes our impeller and volute reach to the best match for higher hydraulic efficiency than others
24VDC 240W coolant pump for electric truck thermal management BLDC EWP with PWM control 2400L/H 17M lift head
Automotive grade electronic components makes our pump withstand extreme harsh operating environment
24VDC 240W coolant pump for electric truck thermal management BLDC EWP with PWM control 2400L/H 17M lift head
Software&Tools applied:
CFturbo/ANSYS FLUENT/Compile/Link/Debug/Simulate/Emulate/Program /SlikEdit, TestLink Software guidelines:Code Check；SVN:SW version control system (PVCS)；Test plan/tests (white box, black box)；Internal audit & release
Pump Technical parameter
24VDC 240W coolant pump for electric truck thermal management BLDC EWP with PWM control 2400L/H 17M lift head

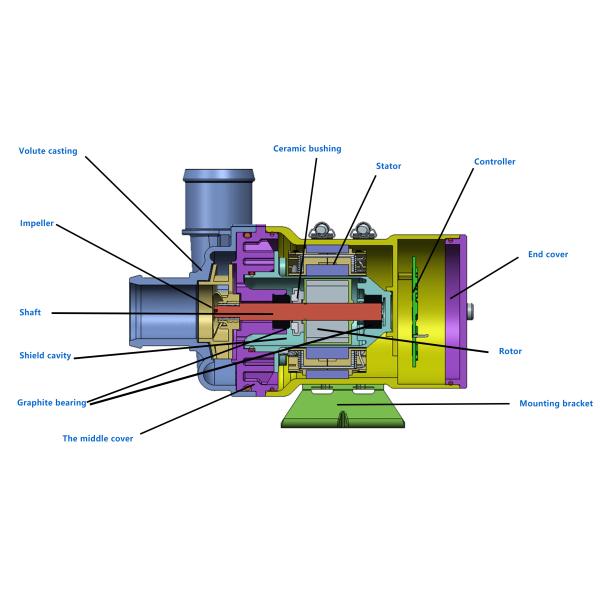

Features
◆Single-stage Centrifugal pump
◆Magnetic force transmission (shield pump structure)
◆High efficiency brushless DC motor, low power consumption, high efficiency, more than 20000hours service life.
◆With wide range operating temperature
◆PWM signal speed controlling
◆With constant flow controlling
◆Reverse polarity protection
◆Dry running protection
◆Over Voltage, over current protection
◆Overload, over temperature protection
Driving device (Including motor)
◆Driving electromagnet: nylon plastic capsulated magnet
◆Screws and nuts: SUS 304 stainless steel
Driving Motor : brushless motor
◆Motor winding frame :PPA GF
◆Pump housing: Die-casting aluminum case with sandblasting and impregnation treatment
◆Bracket: Steel with powder coating
◆Bracket hoop: US 304 stainless steel
◆Waterproof based on IP68 rating (en60529)
◆Connector model: AMP282106-1(matched Plug AMP282088-1)
◆Nozzle diameter:25mm
24VDC 240W coolant pump for electric truck thermal management BLDC EWP with PWM control 2400L/H 17M lift head
24VDC 240W coolant pump for electric truck thermal management BLDC EWP with PWM control 2400L/H 17M lift head
Performance
■Temperature parameter
Medium liquid temperature: -40℃ to +85℃ (-40°F to + 185°F)
Working ambient temperature: -40℃ to +85℃ (-40°F to +185°F) Humidity ≤90%
Storage temperature: -40℃ to +70℃ (-40°F to +158°F) (up to 100 ℃, but it will shorten the
service life)
■ System pressure
-0.2 to 2.5 bar ( 100℃ (212°F).
The service life is more than 20,000 hours based on the rated voltage and 36℃(86°F) ambient temperature.
24VDC 240W coolant pump for electric truck thermal management BLDC EWP with PWM control 2400L/H 17M lift head
PWM character
PWM Dutycycle input description:
0%≤duty≤10%: Stop state
11%≤duty≤55%:Min speed running
56%≤duty≤90%:Linear speed control
91%≤duty≤100%:Max speed running
Remark:
1:PWM duty cycle metrical error 2%
2:PWM voltage:24VDC(＞5V effective)
frequency:50-1000Hz
(500Hz recommended)
3: Recommended PWM stop duty:7%
4: Recommended 0% duty as PWM disconnect
24VDC 240W coolant pump for electric truck thermal management BLDC EWP with PWM control 2400L/H 17M lift head
Fault feedback signal output
Normal working:High level voltage output(22-23VDC)
Abnormal working:Low level voltage output:(＜3V)
Typical current:5mA
Pump overall size
24VDC 240W coolant pump for electric truck thermal management BLDC EWP with PWM control 2400L/H 17M lift head
24VDC 240W coolant pump for electric truck thermal management BLDC EWP with PWM control 2400L/H 17M lift head
Manufacturing Technique
we have 5 semi-automatic pump production lines in dust-free workshops
24VDC 240W coolant pump for electric truck thermal management BLDC EWP with PWM control 2400L/H 17M lift head
24VDC 240W coolant pump for electric truck thermal management BLDC EWP with PWM control 2400L/H 17M lift head
24VDC 240W coolant pump for electric truck thermal management BLDC EWP with PWM control 2400L/H 17M lift head
24VDC 240W coolant pump for electric truck thermal management BLDC EWP with PWM control 2400L/H 17M lift head
24VDC 240W coolant pump for electric truck thermal management BLDC EWP with PWM control 2400L/H 17M lift head

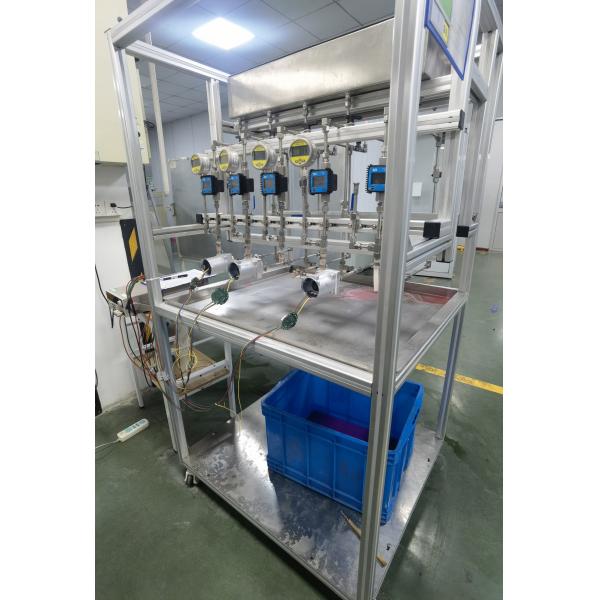

1000m² testing room, UL certified lab and R&D deparment with 175 sets testing machines for pump design and development verification,durability testing,aging testing,performance testing.
24VDC 240W coolant pump for electric truck thermal management BLDC EWP with PWM control 2400L/H 17M lift head
24VDC 240W coolant pump for electric truck thermal management BLDC EWP with PWM control 2400L/H 17M lift head
24VDC 240W coolant pump for electric truck thermal management BLDC EWP with PWM control 2400L/H 17M lift head
24VDC 240W coolant pump for electric truck thermal management BLDC EWP with PWM control 2400L/H 17M lift head

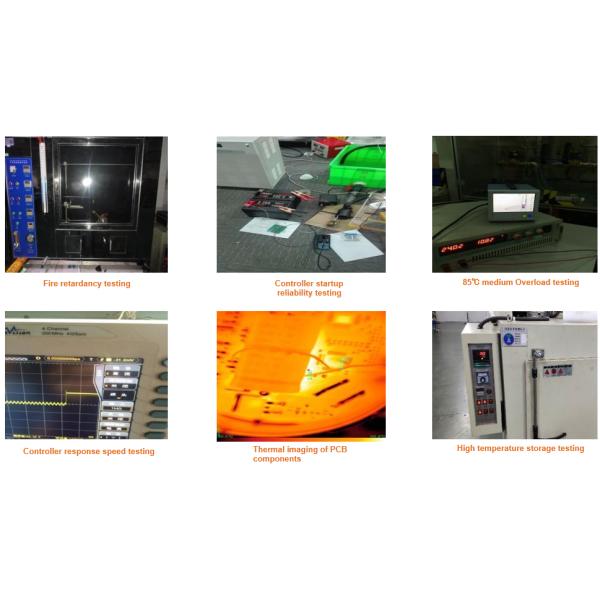

Verify capabilities and equipments
Over 50 typical testings performed according to automotive standards
24VDC 240W coolant pump for electric truck thermal management BLDC EWP with PWM control 2400L/H 17M lift head
24VDC 240W coolant pump for electric truck thermal management BLDC EWP with PWM control 2400L/H 17M lift head
24VDC 240W coolant pump for electric truck thermal management BLDC EWP with PWM control 2400L/H 17M lift head
24VDC 240W coolant pump for electric truck thermal management BLDC EWP with PWM control 2400L/H 17M lift head
Product packaging
24VDC 240W coolant pump for electric truck thermal management BLDC EWP with PWM control 2400L/H 17M lift head
Packing info
Pump well packed in an individual box
one pump/box
6 boxes/carton
Box size:20*12*17cm
Carton size:43*38*20cm
